Flat Plate Wheelie Bar (2024 Version, photos not updated yet) - RDD4411
The 2024 version of the bar now includes a Lightened Main Plate, the 7g Wheel Mount, 22mm tire instead of 30mm, and the Aluminum Bearing Spacer as standard.

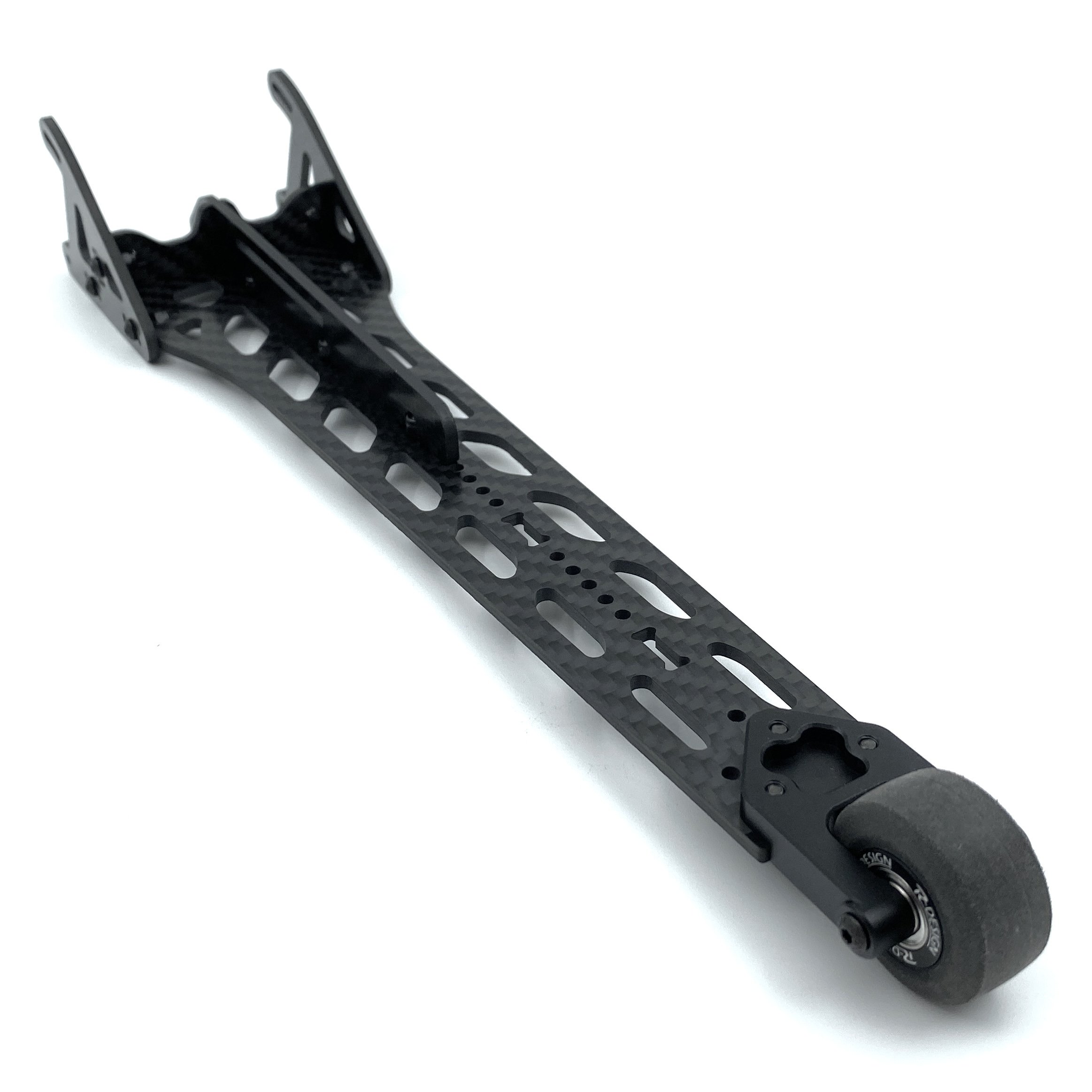

This machined carbon fiber and aluminum flat plate wheelie bar is designed to be compatible with any Traxxas style mount.
This bar combines the mounting versatility and rigidity of a ladder bar with the lightweight nature of a flat plate bar.
The Bar is 300mm hole to hole
The center spine can be swapped for shorter or longer variants to adjust the amount of flex the bar has. A medium and extra small spine are included. Alternatively, the bar also has mounting points for a turnbuckle if you would prefer to mount it like that.

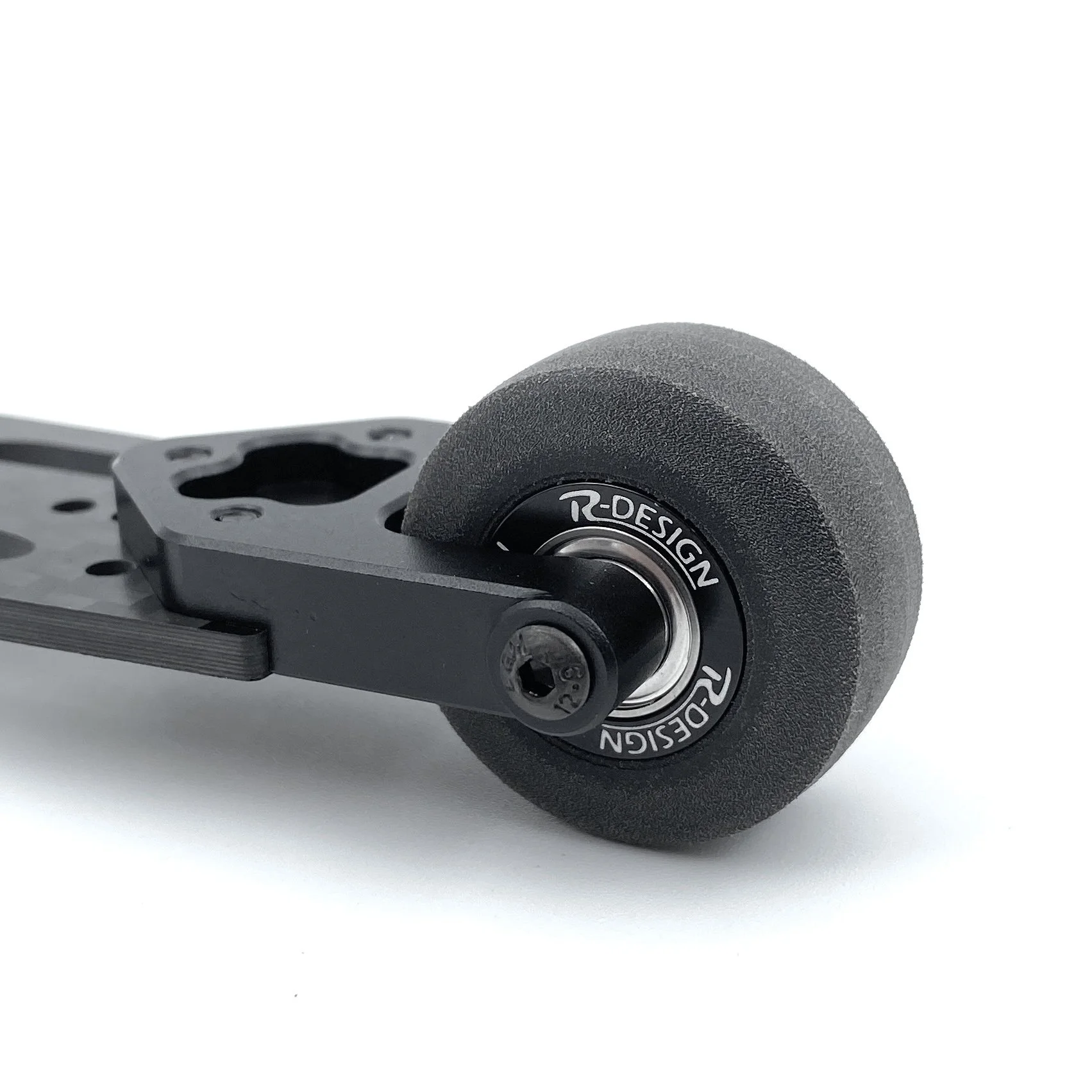

The polyurethane rubber wheel is 30mm in diameter and 15mm wide. It features a crowned surface to achieve a more forgiving feel when the tire makes contact with the ground. The included 6x12x4mm ceramic bearings ride on machined aluminum bearing seats and are aligned using an aluminum spacer to ensure proper function and durability.
The bar can be used shocked or rigid. Bearing Sidebars (RDD3411 or RDD3412) are recommended if you’d like to use the bar in the shocked configuration.
The Package Includes:
1x Main Plate 2023 (RDD4401)

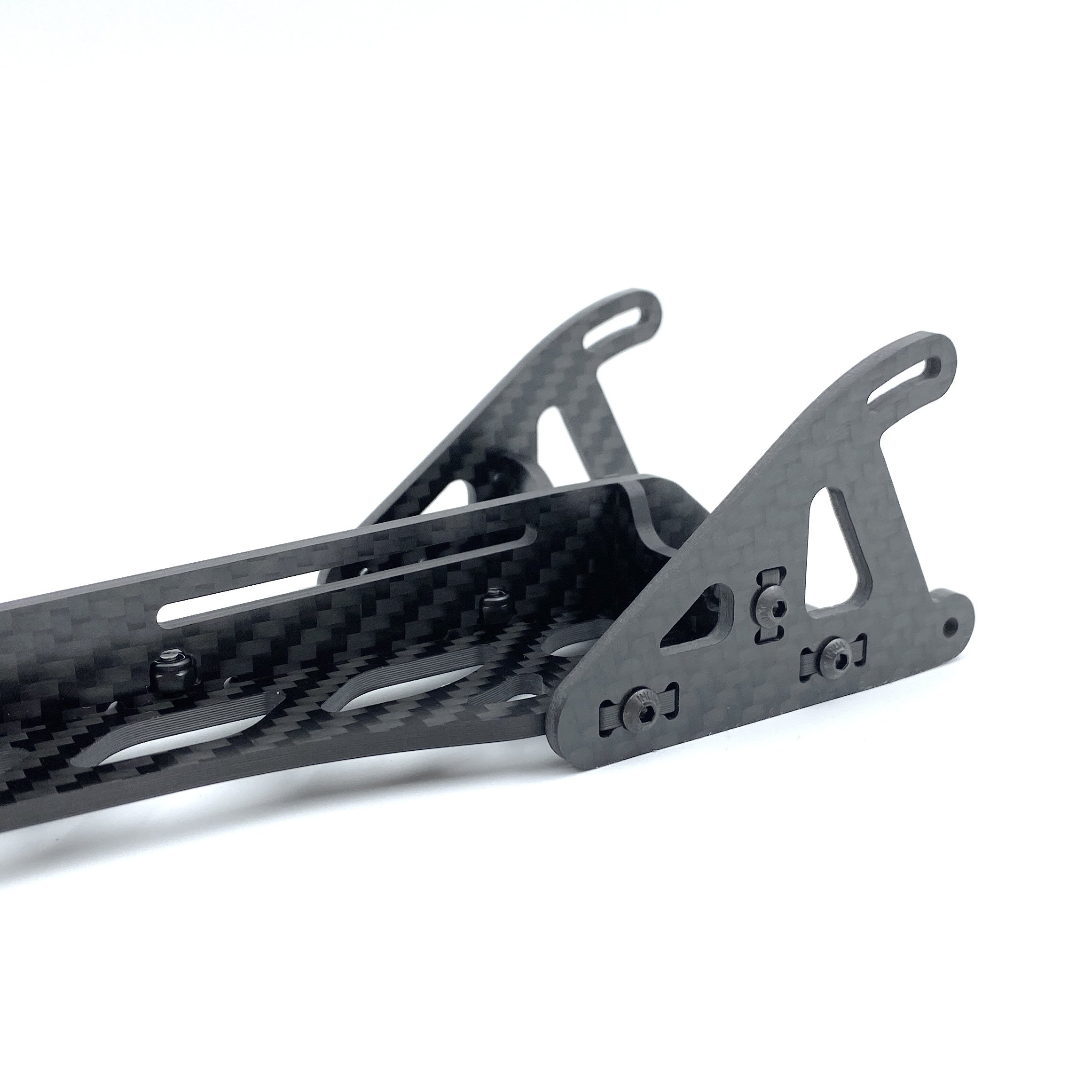

2x Side Plates (RDD4402)
1x Cross Plate (RDD4403)
1x Extra Small Spine (RDD4404)
1x Medium Spine (RDD4406)
1x 7g Wheel Mount (RDD4500)
1x 22mm Urethane Tire (RDD4802)
2x Bearing Seat (RDD4803)
1x Aluminum Bearing Spacer (RDD4805)
2x 6x12x4mm Ceramic Bearing (RDD3302)
9x M3x8mm Screw
10x M3x12mm ScrewRDD4802
1x M3xmm Screw
1x M3x30mm Screw
15x M3 Locknut
The 2024 version of the bar now includes a Lightened Main Plate, the 7g Wheel Mount, 22mm tire instead of 30mm, and the Aluminum Bearing Spacer as standard.
This machined carbon fiber and aluminum flat plate wheelie bar is designed to be compatible with any Traxxas style mount.
This bar combines the mounting versatility and rigidity of a ladder bar with the lightweight nature of a flat plate bar.
The Bar is 300mm hole to hole
The center spine can be swapped for shorter or longer variants to adjust the amount of flex the bar has. A medium and extra small spine are included. Alternatively, the bar also has mounting points for a turnbuckle if you would prefer to mount it like that.
The polyurethane rubber wheel is 30mm in diameter and 15mm wide. It features a crowned surface to achieve a more forgiving feel when the tire makes contact with the ground. The included 6x12x4mm ceramic bearings ride on machined aluminum bearing seats and are aligned using an aluminum spacer to ensure proper function and durability.
The bar can be used shocked or rigid. Bearing Sidebars (RDD3411 or RDD3412) are recommended if you’d like to use the bar in the shocked configuration.
The Package Includes:
1x Main Plate 2023 (RDD4401)
2x Side Plates (RDD4402)
1x Cross Plate (RDD4403)
1x Extra Small Spine (RDD4404)
1x Medium Spine (RDD4406)
1x 7g Wheel Mount (RDD4500)
1x 22mm Urethane Tire (RDD4802)
2x Bearing Seat (RDD4803)
1x Aluminum Bearing Spacer (RDD4805)
2x 6x12x4mm Ceramic Bearing (RDD3302)
9x M3x8mm Screw
10x M3x12mm ScrewRDD4802
1x M3xmm Screw
1x M3x30mm Screw
15x M3 Locknut
The 2024 version of the bar now includes a Lightened Main Plate, the 7g Wheel Mount, 22mm tire instead of 30mm, and the Aluminum Bearing Spacer as standard.
This machined carbon fiber and aluminum flat plate wheelie bar is designed to be compatible with any Traxxas style mount.
This bar combines the mounting versatility and rigidity of a ladder bar with the lightweight nature of a flat plate bar.
The Bar is 300mm hole to hole
The center spine can be swapped for shorter or longer variants to adjust the amount of flex the bar has. A medium and extra small spine are included. Alternatively, the bar also has mounting points for a turnbuckle if you would prefer to mount it like that.
The polyurethane rubber wheel is 30mm in diameter and 15mm wide. It features a crowned surface to achieve a more forgiving feel when the tire makes contact with the ground. The included 6x12x4mm ceramic bearings ride on machined aluminum bearing seats and are aligned using an aluminum spacer to ensure proper function and durability.
The bar can be used shocked or rigid. Bearing Sidebars (RDD3411 or RDD3412) are recommended if you’d like to use the bar in the shocked configuration.
The Package Includes:
1x Main Plate 2023 (RDD4401)
2x Side Plates (RDD4402)
1x Cross Plate (RDD4403)
1x Extra Small Spine (RDD4404)
1x Medium Spine (RDD4406)
1x 7g Wheel Mount (RDD4500)
1x 22mm Urethane Tire (RDD4802)
2x Bearing Seat (RDD4803)
1x Aluminum Bearing Spacer (RDD4805)
2x 6x12x4mm Ceramic Bearing (RDD3302)
9x M3x8mm Screw
10x M3x12mm ScrewRDD4802
1x M3xmm Screw
1x M3x30mm Screw
15x M3 Locknut
Optional Tuning Accessories:
Short Main Plate (RDD4400)
Extra Small Spine (RDD4404)
Small Spine (RDD4405)
Medium Spine (RDD4406)
Large Spine (RDD4407)
Extra Large Spine (RDD4408)
Aluminum Wheel Mount 7g (RDD4500)
Aluminum Wheel Mount 11g (RDD4501)
Brass Wheel Mount 37g (RDD4502)
Carbon Wheel Mount 5g (RDD4503)
Lightweight Hardware Kit (RDD4601)
0.5mm Carbon Skid Plate (RDD4701)
1mm Carbon Skid Plate (RDD4702)
1mm Titanium Skid Plate (RDD4703)
30mm Urethane Tire (RDD4802)
22mm Urethane Tire (RDD4802)
Use the Linked Mount For The Vehicle You Want To Use
Team Associated DR10 (RDD121)
Team Associated DR10M (RDD5111)
Team Associated B5M (RDD321)
Team Associated B6.1 / B6.2 / B6.3 / B6.4 (RDD231)
Losi 22S (RDD1311)
TLR 22 3.0 / 4.0 / 5.0 (RDD421 / RDD521)
TLR 22 2.0 Rear Motor (RDD911)
Traxxas Slash (RDD1011)
Traxxas Drag Slash (RDD3611)
GFRP Apollo (RDD3811)
DRC Maxim (RDD4311)
