Bearing Sidebars +20g - RDD3411

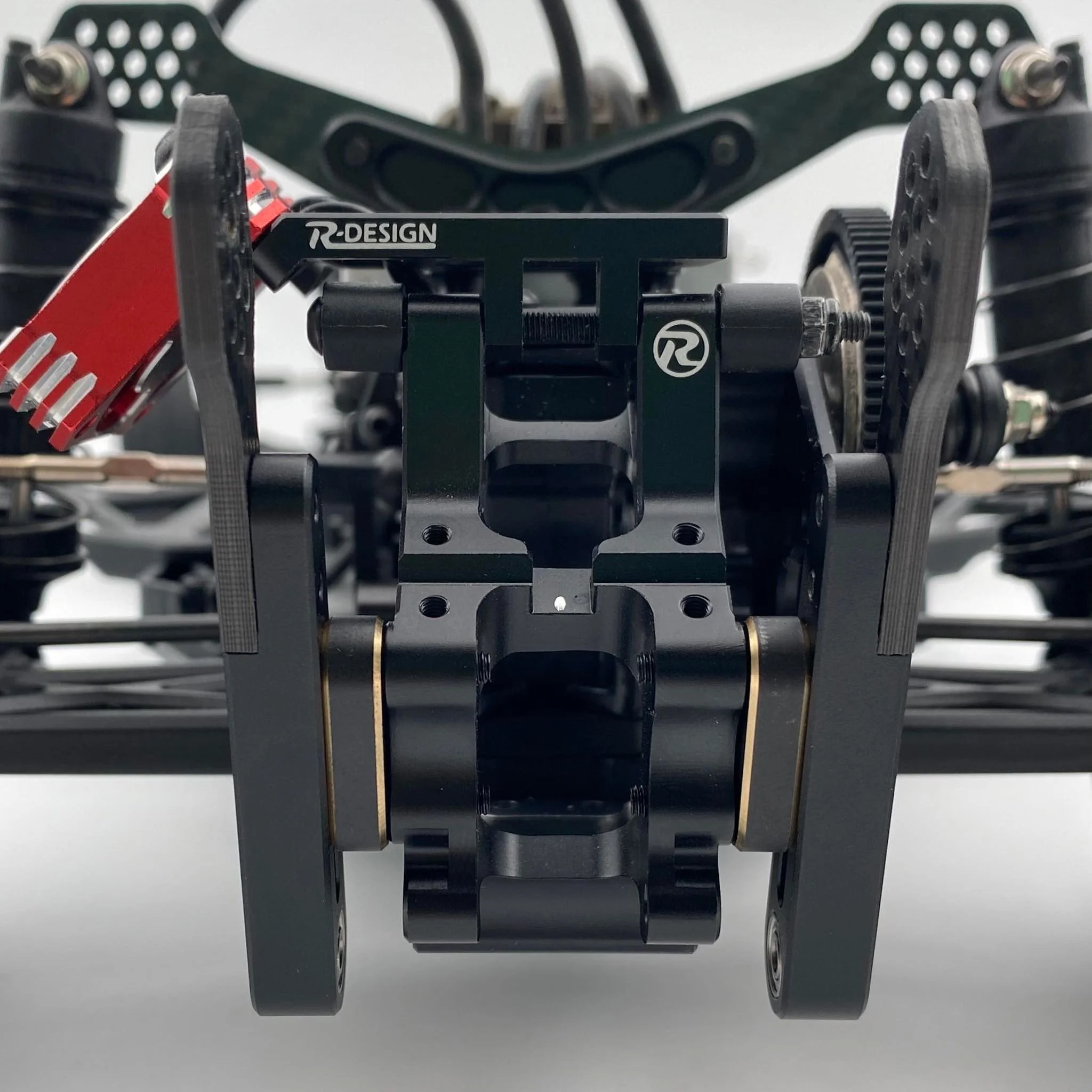

This machined 6061-T6 and carbon fiber sidebar setup allows for a shocked wheelie bar to function as smooth as possible.
This machined 6061-T6 and carbon fiber sidebar setup allows for a shocked wheelie bar to function as smooth as possible.
This machined 6061-T6 and carbon fiber sidebar setup allows for a shocked wheelie bar to function as smooth as possible.
The 3x8x3mm ball bearings provide a smooth pivot point that can be bolted to securely and the carbon fiber extension plates raise the upper mounting position of the shocks which makes them more responsive.
This setup adds 20g over the stock sidebars included with all R-Design mounts.
Body Mount Riser Block (RDD3501) is recommended for use with:
22S Rear Body Mount (RDD1501)
AE 6 Series Rear Shock Tower and Body Mount (RDD1601)
TLR 22 5.0 Rear Shock Tower and Body Mount (RDD1602)

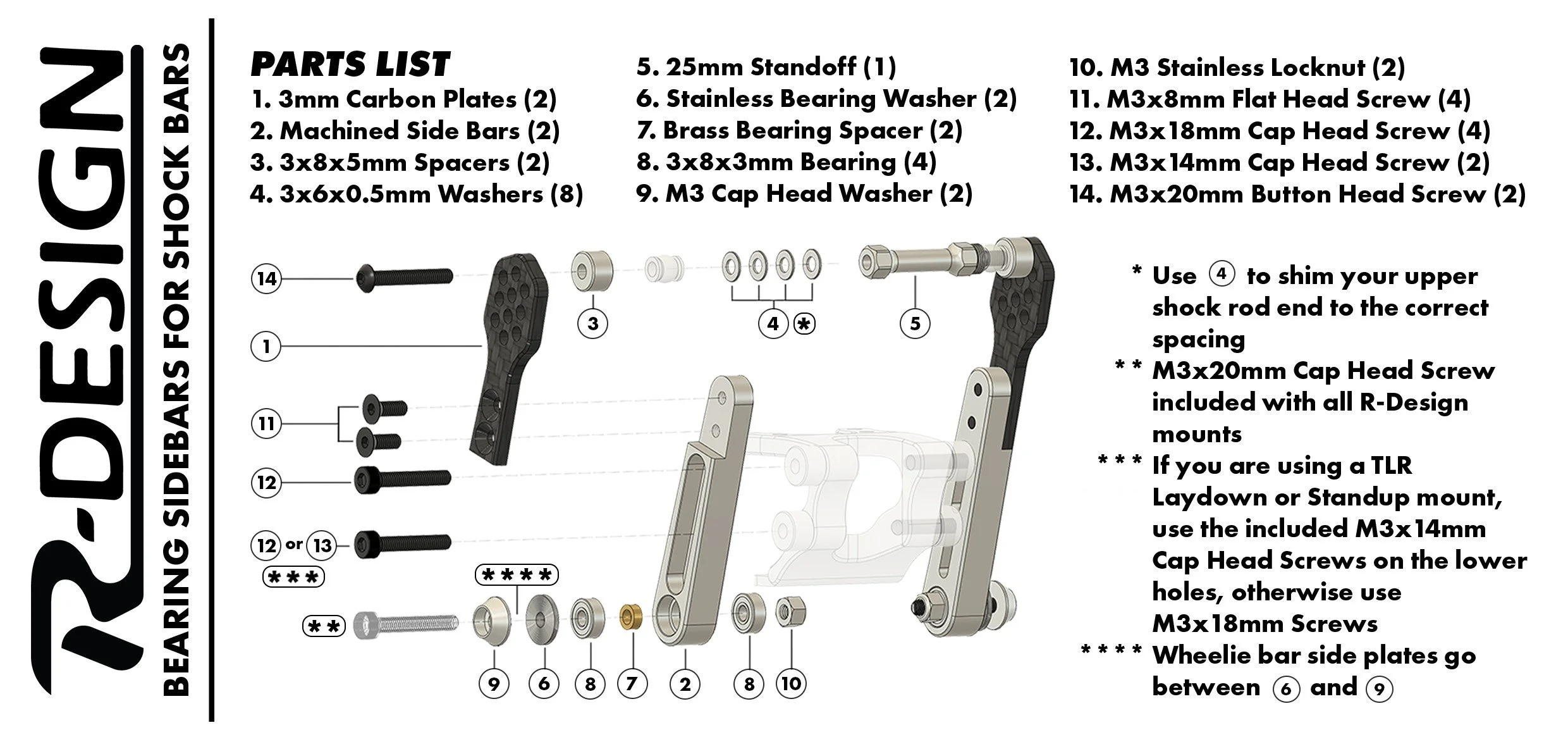

The Package Includes:
2x Side Bar
2x Carbon Plate
1x 25mm Standoff
2x 3x8x5mm Spacer
8x 3x6x0.5mm Washers
2x Stainless Bearing Washer
2x Brass Bearing Spacer
4x 3x8x3mm Bearing
4x M3x8mm Flat Head Screw
2x M3x14mm Cap Head Screw
4x M3x18mm Cap Head Screw
2x M3x20mm Button Head Screw
2x M3 Stainless Lock Nut
