FA1.0 Isogrid Chassis Conversion - PREORDER
The FA1.0 Isogrid Chassis conversions kits for 15 of the most popular Yokomo, MST, and Reve’D cars are in production!
Pre-orders will be open throughout the duration of the production period or while supplies last.
Orders are expected to ship on or before 6-24-2024.
Any additional items purchased in the same order will ship at the same time as the chassis kit.
The FA1.0 Isogrid Chassis conversions kits for 15 of the most popular Yokomo, MST, and Reve’D cars are in production!
Pre-orders will be open throughout the duration of the production period or while supplies last.
Orders are expected to ship on or before 6-24-2024.
Any additional items purchased in the same order will ship at the same time as the chassis kit.
The FA1.0 Isogrid Chassis conversions kits for 15 of the most popular Yokomo, MST, and Reve’D cars are in production!
Pre-orders will be open throughout the duration of the production period or while supplies last.
Orders are expected to ship on or before 6-24-2024.
Any additional items purchased in the same order will ship at the same time as the chassis kit.
Chassis Features: (ALL Versions)
The FA1.0 Isogrid Chassis is the most versatile tuning chassis available.
Featuring striking form follows function design, the FA1.0 Isogrid Chassis allows you to easily and quickly adjust the longitudinal flex characteristics on the fly by repositioning the adjustment bracket and chassis stiffener which are accessible from the bottom of the chassis. Crafted from a 4mm carbon fiber plate, the chassis is meticulously milled and pocketed on both sides to achieve a lightweight structure without compromising stiffness. Even with the added thickness, the assembled chassis components maintain a highly competitive overall weight.
Adjusting the wheelbase of the chassis is a breeze with just a few screws to loosen. This allows you to fit a wide variety of bodies that are currently available on the market. The chassis offers an adjustment range of 10mm, giving you the flexibility to fine-tune it according to your needs (-3mm, +7mm from stock). A replacement top deck with matching styling is included to facilitate this feature.
The Chassis features a striking UV printed ruler that is both clear and user-friendly, running alongside the flex and wheelbase adjustment slots. This handy feature makes it a breeze to tune your car for different tracks, ensuring top-notch and consistent performance every time.
The conversion boasts a user-friendly quick release battery containment system that eliminates the need for constant tinkering with loose screws and o-rings. You can effortlessly adjust the battery position forward or backward to swiftly alter the weight distribution of the chassis. The battery tray operates on friction, with the aluminum upright clamping against nylon washers to securely hold the carbon fiber finger in place. You can easily adjust the tension by tightening the screw and lock-nut. This design is not only simple and lightweight but also accommodates batteries of various thicknesses without requiring any part changes. It can support a battery as tall as 25mm (Top deck may limit battery height in some chassis), such as the Gens Ace 6000mah Redline Pack. The battery retainer hoop can accommodate batteries up to 97mm in length. If you're using shorter batteries, you can install the included aluminum spacers to minimize any side-to-side movement.
Chassis Features: (MD2.0, SD2.0, RDX, RMX)
In order to accommodate the flex and wheelbase adjustment features on these chassis, a floating servo mount was required. This part is machined to be as light as possible while retaining the required stiffness to ensure a direct steering feel. The mount is designed to maintain the relative position of the servo spline so that you can utilize the stock turnbuckles
Whats Included:
The Package Includes: MD1.0
FA1.0 Isogrid Chassis Plate
Adjustable Top Deck
Flex Adjuster Bracket
Chassis Stiffener Bracket
Battery Tray Components
All Required Hardware
The Package Includes: MD2.0
FA1.0 Isogrid Chassis
Adjustable Top Deck
Flex Adjuster Bracket
Chassis Stiffener Bracket
Floating Servo Mount
Battery Tray Components
All Required Hardware
The Package Includes: YD2S - YD2Z - SD1.0 - RD1.0 (May fit more YD2 variants but we don’t have them on hand to check )
FA1.0 Isogrid Chassis
Adjustable Top Deck
Flex Adjuster Bracket
Chassis Stiffener Bracket
Battery Tray Components
All Required Hardware
The Package Includes: RD2.0
FA1.0 Isogrid Chassis
Adjustable Top Deck
Flex Adjuster Bracket
Chassis Stiffener Bracket
Battery Tray Components
All Required Hardware

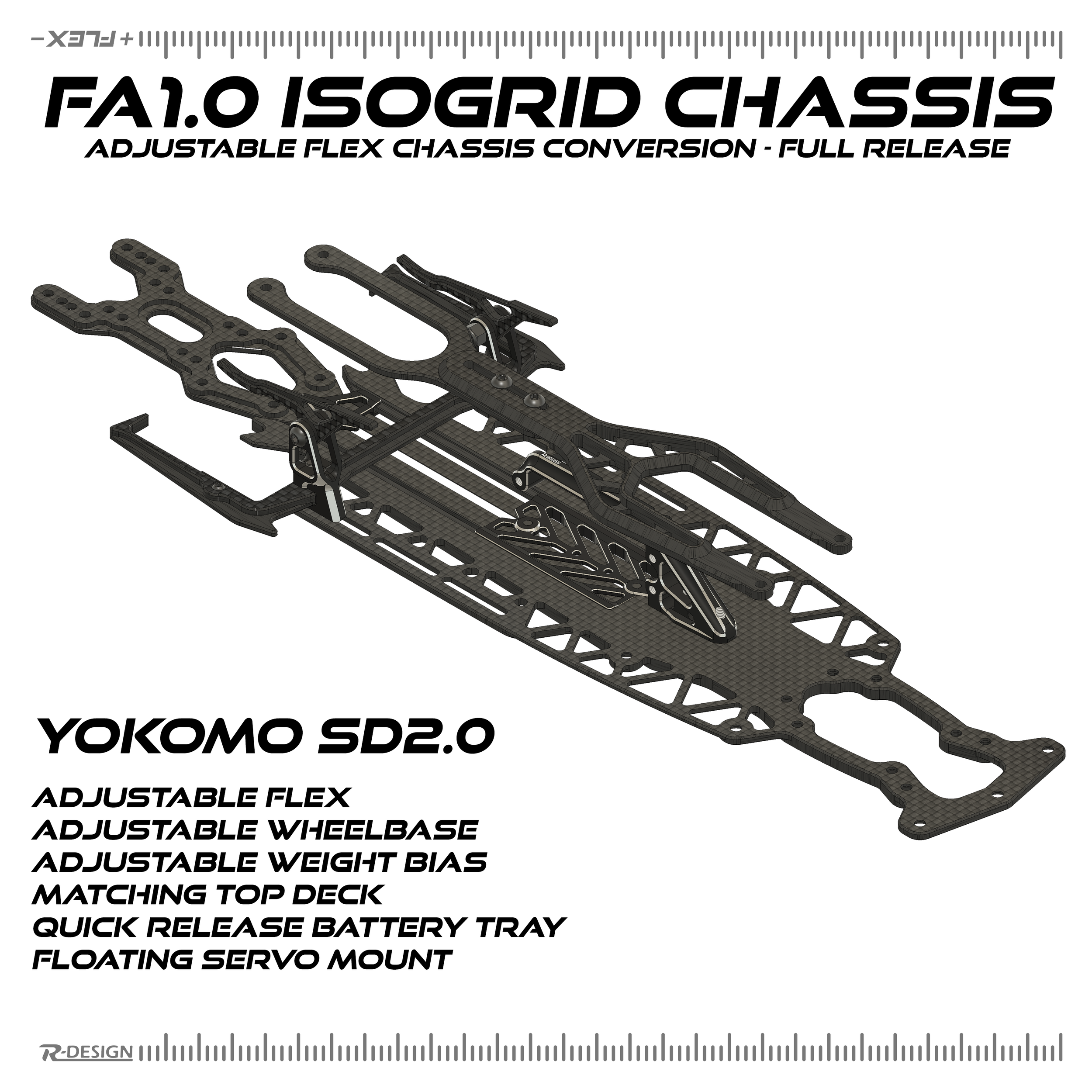

The Package Includes: SD2.0
FA1.0 Isogrid Chassis
Adjustable Top Deck
Flex Adjuster Bracket
Chassis Stiffener Bracket
Floating Servo Mount
Battery Tray Components
All Required Hardware
The Package Includes: RMX 2.0 - 2.5 - 3.0 KMW - EX - EX GT - Classic
FA1.0 Isogrid Chassis
Adjustable Top Deck and Deck Connectors
Flex Adjuster Bracket
Chassis Stiffener Bracket
Floating Servo Mount
Battery Tray Components
All Required Hardware

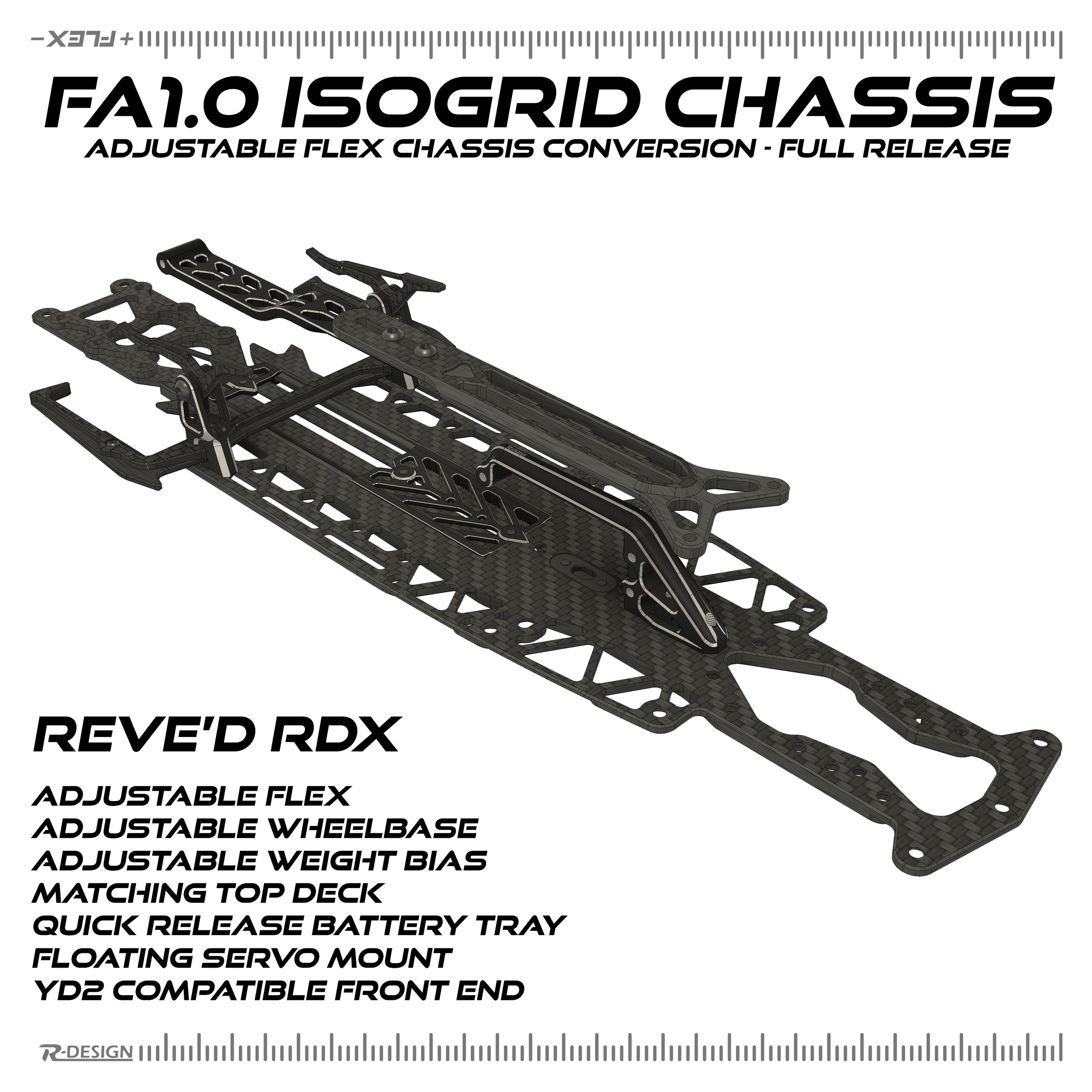

The Package Includes: RDX
FA1.0 Isogrid Chassis
Adjustable Top Deck and Deck Bracket
Flex Adjuster Bracket
Chassis Stiffener Bracket
Floating Servo Mount
Battery Tray Components
All Required Hardware
Optional Parts:
FA1.0 Chassis Stiffener (RDD9026) : If you want the chassis to be stiffer, consider running two stiffeners back to back
FA1.0 Floating Servo Mount (RDD9027A) : Comes standard with the MD2.0, RMX, and RDX Chassis. can be installed on all of the chassis except the MD1.0 version
FA1.0 Floating Servo Mount +10mm (RDD9027B) : Comes standard with the SD2.0 Chassis. Can be installed on all of the chassis except the MD1.0 version to move the servo back 10mm
FA1.0 Color Pack - Purple (RDD9028A) : Includes the Flex Adjuster, Chassis Stiffener, and Battery Mount Uprights anodized in Yokomo Purple
FA1.0 Color Pack - Red (RDD9028B) : Includes the Flex Adjuster, Chassis Stiffener, and Battery Mount Uprights anodized in Yokomo Red
FA1.0 HCG Battery Plate - Plain Carbon (RDD9029A) : Can be installed to relocate the battery tray above the top deck for weight shift setups
FA1.0 HCG Battery Plate - Twill Carbon (RDD9029B) : Can be installed to relocate the battery tray above the top deck for weight shift setups
FA1.0 RDX Top Deck for Rhino DDSS Conversion (RDD9075) : If you want to run the Rhino DDSS on the RDX, this top deck accommodates the new servo position.
